GEKON Big Foot
Model: GEKON Big Foot Towed Corrugation
Towed rail corrugation and rail profile measurement trolley — contactless laser sensors with 0.15 μm resolution, grooved and vignole rails, 40 kg, 8-hour battery.
The towed member of the GEKON family — contactless rail corrugation and rail profile measurement behind a railway vehicle, both grooved and vignole rails, with 'stay on track' safety elements, so it passes through switches smoothly without derailing.
Measurement Tasks
At a glance
GEKON Big Foot in Action

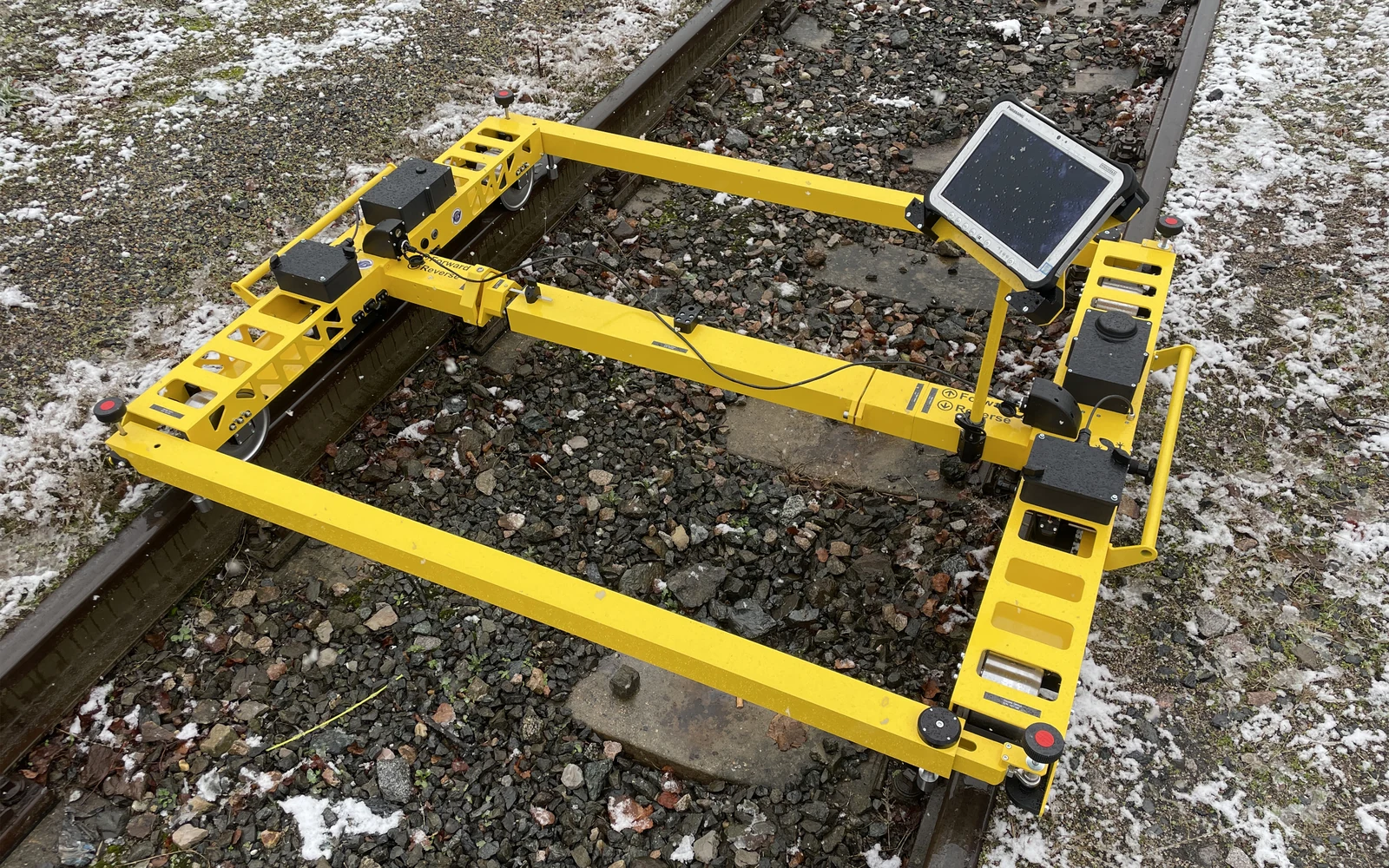

GEKON Big Foot passing through a switch on a snow-covered track, pushed by hand for the demonstration
Overview & Specifications
Why Choose GEKON Big Foot
- You need towed corrugation measurement over long distances instead of walking speed.
- Rail corrugation and rail profiles should be recorded in one run.
- Both grooved and vignole rails are in the network.
- Switches must be passed without stopping or derailment risk.
GEKON Big Foot is the towed version of the GEKON modular corrugation measurement system. Pulled behind a railway vehicle, it measures rail surface irregularities without contact on both grooved and vignole rails, and with optional laser profile scanners it records the rail profile and rail head wear in the same run. Laser sensors on two chords give the same 0.15 μm resolution as the walk-behind GEKON Modular.
The robust frame carries "stay on track" safety elements, so the trolley passes switches without derailment. It dismounts into several parts and travels in a wheeled transport box.
- Towed operation — long distances behind a railway vehicle instead of walking speed
- Contactless corrugation — laser sensors on two chords, 5 mm scanning interval
- Rail profiles and wear — optional continuous laser profile scanning from 1 mm interval
- Grooved and vignole rails — one system for different railway networks
- Single or double version — one rail or both rails at once
- Portable — dismountable, wheeled transport box
From Measurement to Report
Measurement runs are recorded with Krab OnBoard 2.0 on a Windows computer. The recorded data is evaluated and reported in Gekon 11: corrugation and wear graphs, profile cross-sections with wear values, section statistics (peak-to-peak, RMS, % of limit exceeded) and 1/3 octave analysis for noise assessment.
Technical Specifications EN 13231-3
Weight
40 kg (double version)
Pushing Rod / Towing Bar
1 kg / 8 kg
Dimensions
1350 × 227 × 1824 mm (L × H × W, double version)
Battery Life
8 hours
Max Measuring Speed
15 km/h
Corrugation Scanning Interval
5 mm
Rail Profile Scanner Interval
Optional, from 1 mm
Sensor Resolution
0.15 μm
What It Measures
Primary measurement capabilities
| Parameter |
|---|
| Rail Corrugation |
| Rail Head Microgeometry |
| Rail Profile (cross-section) |
| Rail Head Wear |
| P-to-P Analysis |
| RMS Analysis |
| Limit exceedance (% of D signals) |
| 1/3 Octave Analysis |
Compatible Add-ons
Rail Profile Measurement
Precise rail wear measurement and profile analysis
Compatible Software
Fully integrated with the KZV software ecosystem
Download Datasheet
Full technical specifications as a PDF:
Videos
Gekon 11 Software
Gekon 11 evaluating rail corrugation and profile data recorded with a GEKON trolley: waveband analysis of the rail surface, rail profile graphs and report generation.
