Model: VIPER Tram Specialist

Measuring trolley for tram switch inspection: track geometry and rail profile measurement on grooved rails.

Developed for tram switch inspection on grooved rails — measures track geometry (gauge, cant, twist) and rail profiles through switches without stopping, on tight curves and metre gauge as well.

At a glance

Weight:25 kg
Max Speed:Walking speed, 5 km/h
Battery:8 hours

Overview & Specifications

Why Choose VIPER

  • You operate tram track with tight-radius curves, metre gauge included.
  • You need combined geometry and rail profile measurement.
  • You must measure through switches without stopping.

VIPER was developed for tram switch inspection. It concentrates on the track geometry that switch maintenance needs — gauge, cant and twist — and measures it together with the wear profiles of both rails in one pass, preferably on grooved rails, with metre gauge handled as readily as standard gauge.

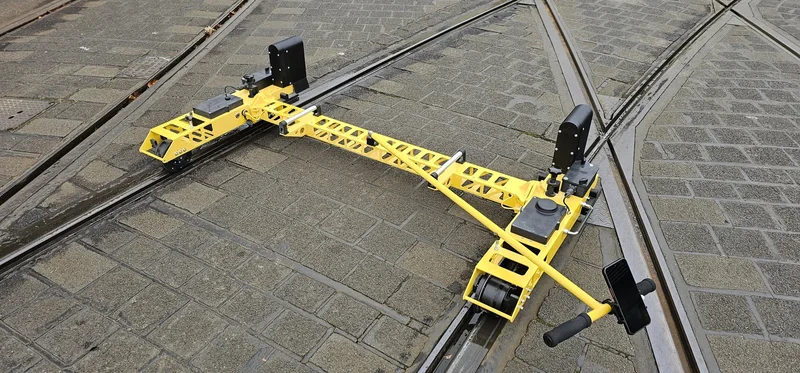

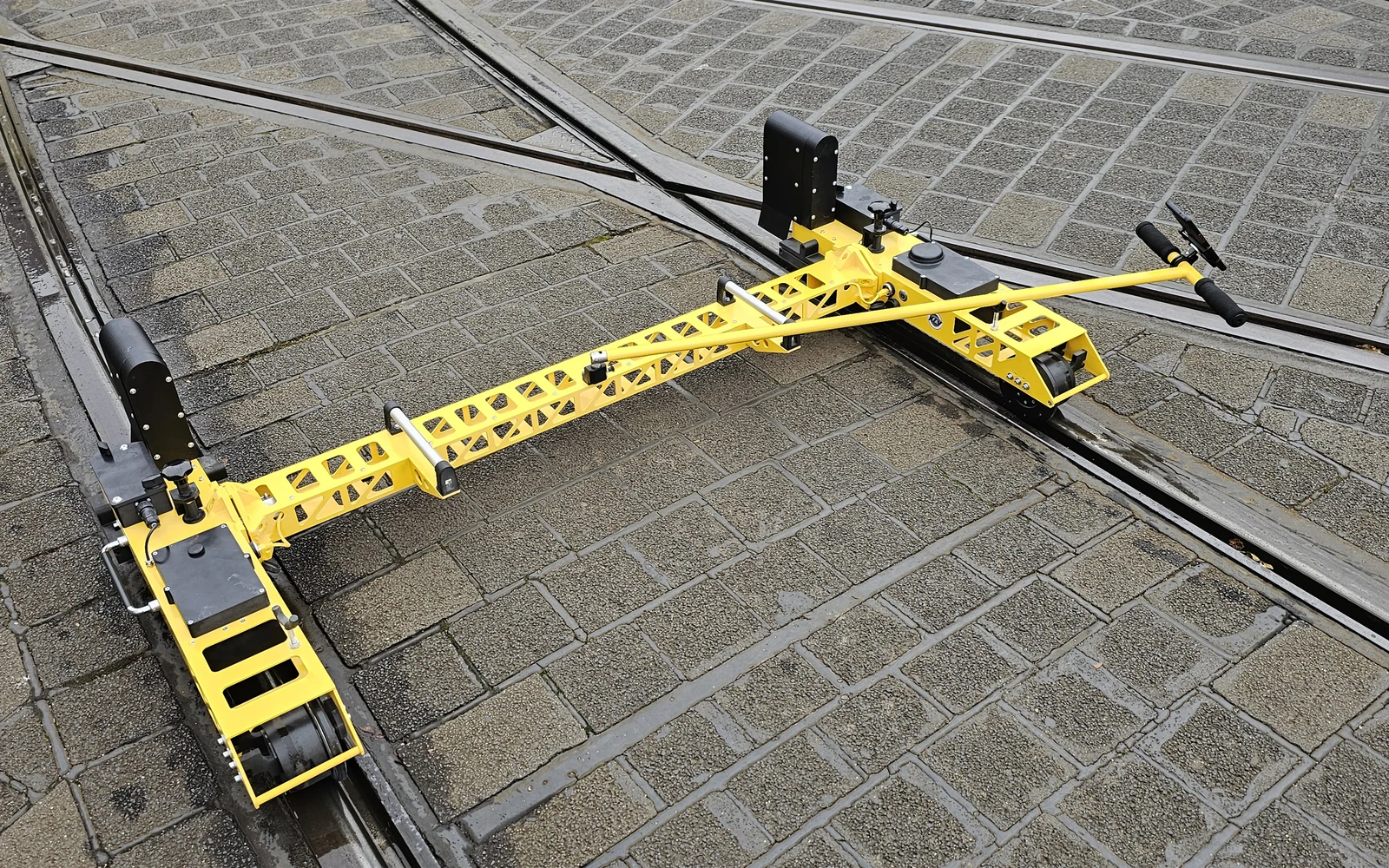

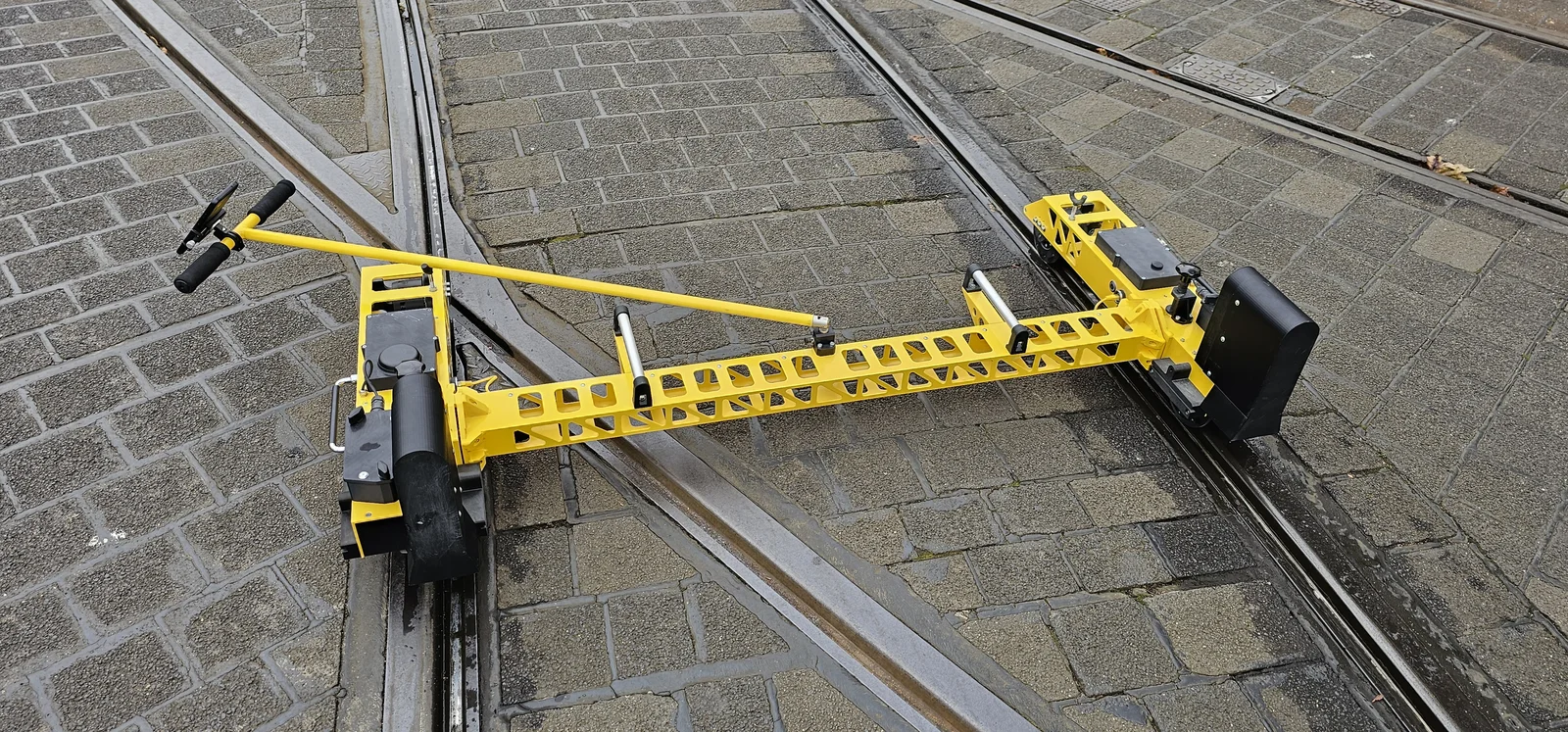

Two measuring units with vertically oriented rail profile cameras on each side. The solid body minimizes the risk of derailment in tight-radius curves typical of tram networks.

Like every KZV track device, VIPER ties each measured parameter to track chainage measured by the odometer, with GNSS position as an additional marker (GNSS/RTK is available as an option); results export to CSV and DXF.

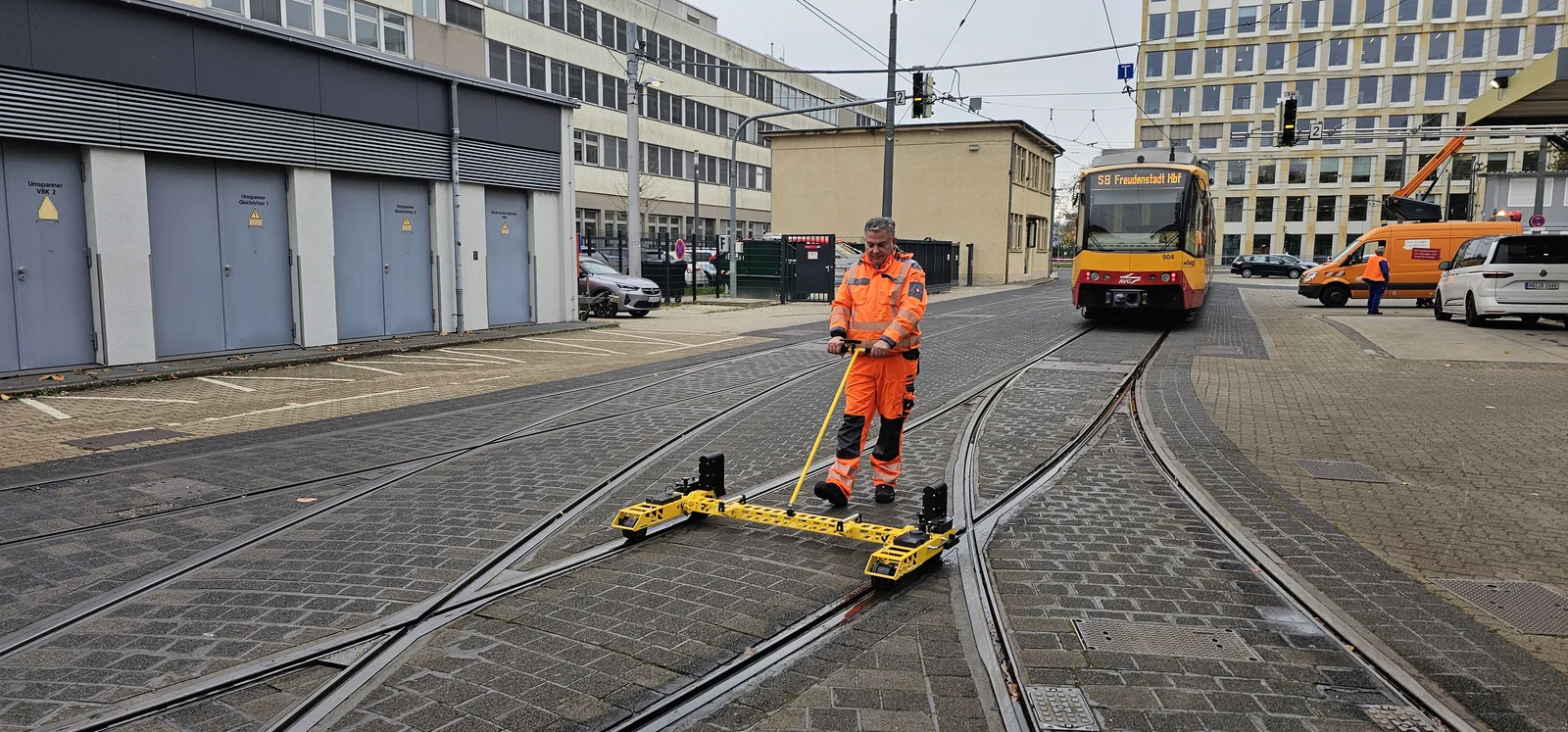

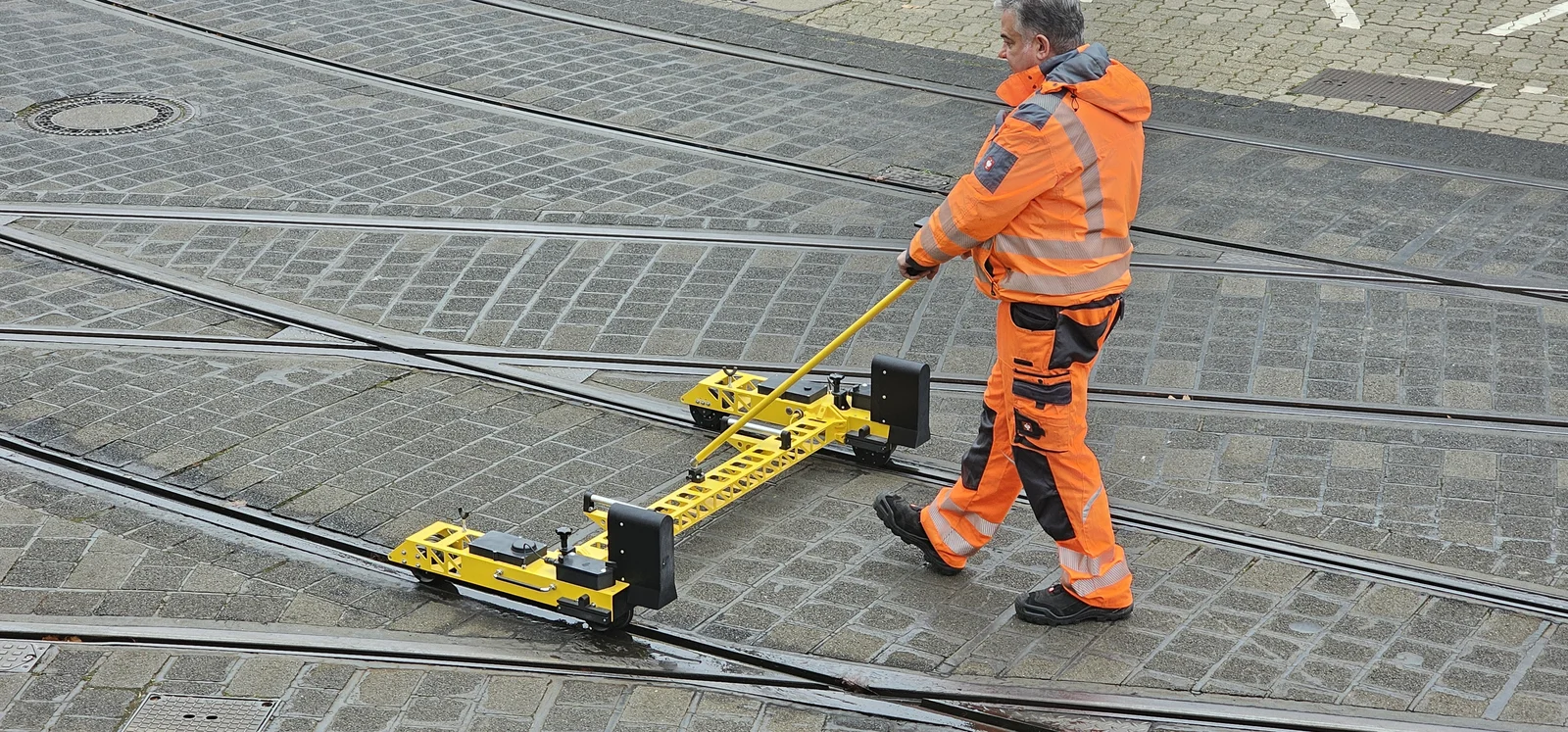

  • Single-operator deployment — light enough (25 kg) for one person to lift on and off the track

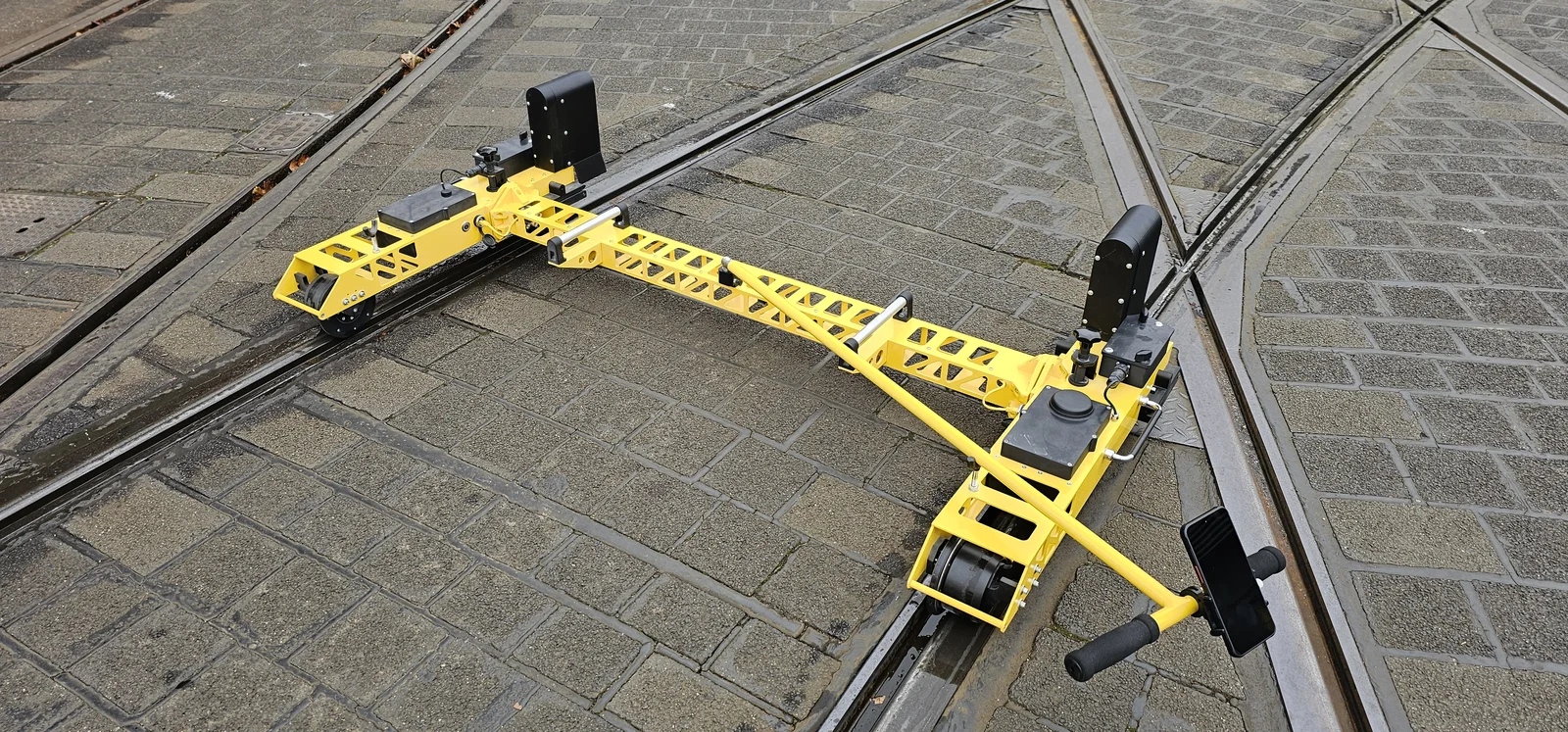

  • Switch-capable — measures through switches with no need to stop or brake
  • Dismountable — separates into three parts for easy transportation
  • 1 μm sensor resolution — extremely high precision rail profile measurement
  • KRAB 11 included — the evaluation software is included in the delivery

Technical Specifications EN 13848 EN 13231

Weight

25 kg

Dimensions

Length 80 cm, Width: gauge + 40 cm

Battery Life

8 hours

Max Speed

Walking speed, 5 km/h

Scanning Interval

From 0.25 mm (configurable)

Sensor Resolution

1 μm

What It Measures

Primary measurement capabilities

Measured quantities for VIPER
Parameter
Gauge
Cant
Twist
Flangeway Gap
Horizontal Head Wear
Vertical Head Wear
Height of Gauge Point

Compatible Add-ons

Rail Profile Measurement

3D cameras scan the rail head without contact at a configurable step (1 m is usual), on one rail or both. Rail head wear and the profile shape are calculated and shown in real time; equivalent conicity according to EN 15302 comes from the same profiles

Non-Contact Wear Analysis
Learn More

Differential GNSS Receiver

A high-precision satellite receiver with RTK corrections (GPS, GLONASS, Galileo, BeiDou) over mobile broadband; the precise position is logged with the measurement

RTK Corrections All Constellations
Learn More

Compatible Software

Fully integrated with the KZV software ecosystem

Download Datasheet

Full technical specifications as a PDF:

Interested in VIPER?

Contact us for detailed specifications, pricing, and delivery information
