T-METIX on a track on a bridge: a yellow beam across the rails with the swiveling laser head on its mast.

T-METIX

Model: T-METIX Laser Geometry & Position

Lightweight 23 kg laser track geometry trolley — gauge, cant and twist plus track position reference, for gauges from 600 to 1676 mm

Lightweight laser trolley for basic track geometry — gauge, cant and twist — that also detects the 2D position of objects around the track, referenced from fixed points or infrastructure elements.

Measurement Tasks

Track GeometryClearance and Catenary
Request QuoteDownload Datasheet

At a glance

Weight:23 kg
Battery:8 hours

T-METIX in Detail

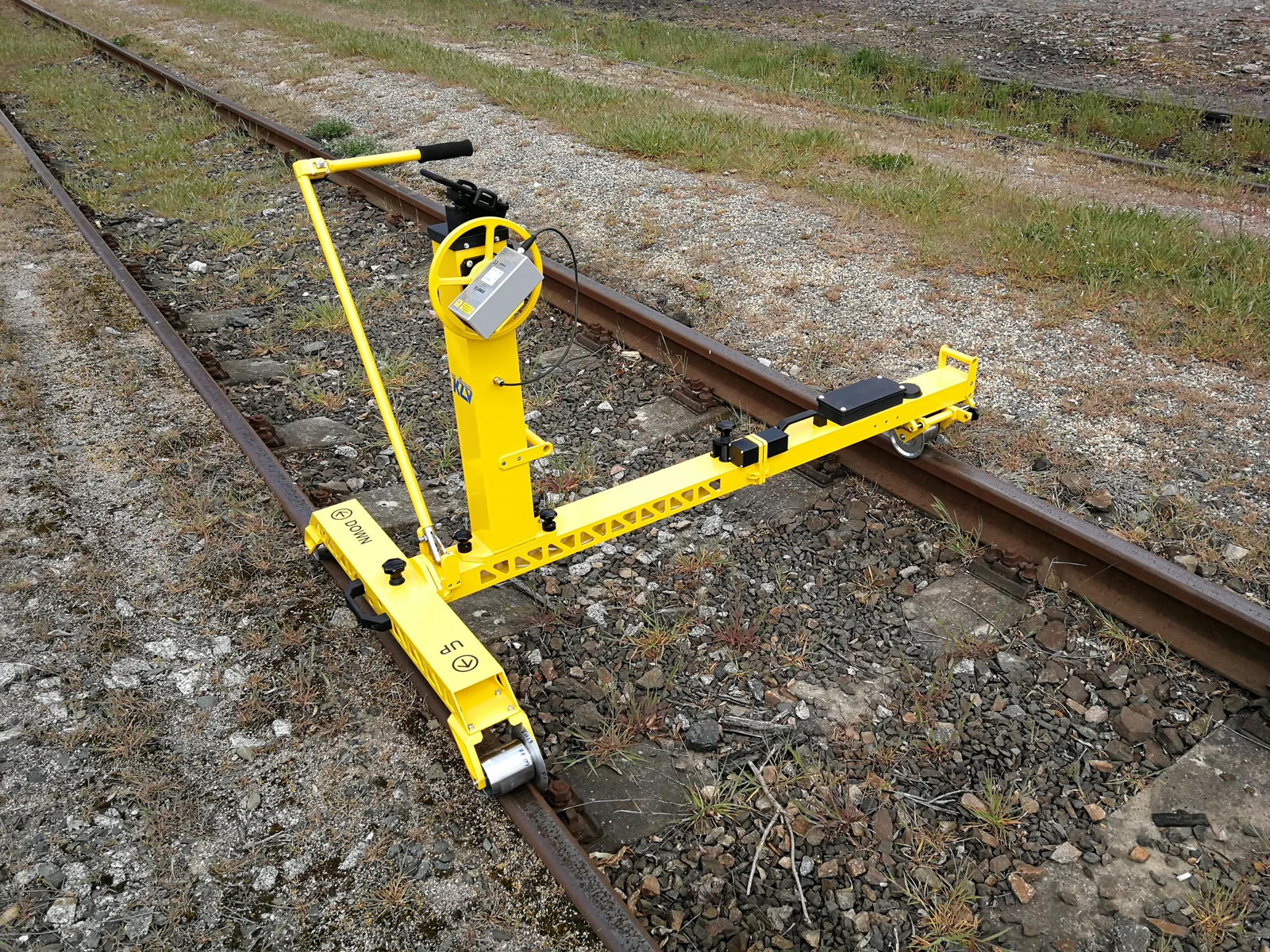

In measuring position: the beam spans the track, the laser distance meter and the handlebar sit on the mast, and one person pushes it
In measuring position: the beam spans the track, the laser distance meter and the handlebar sit on the mast, and one person pushes it

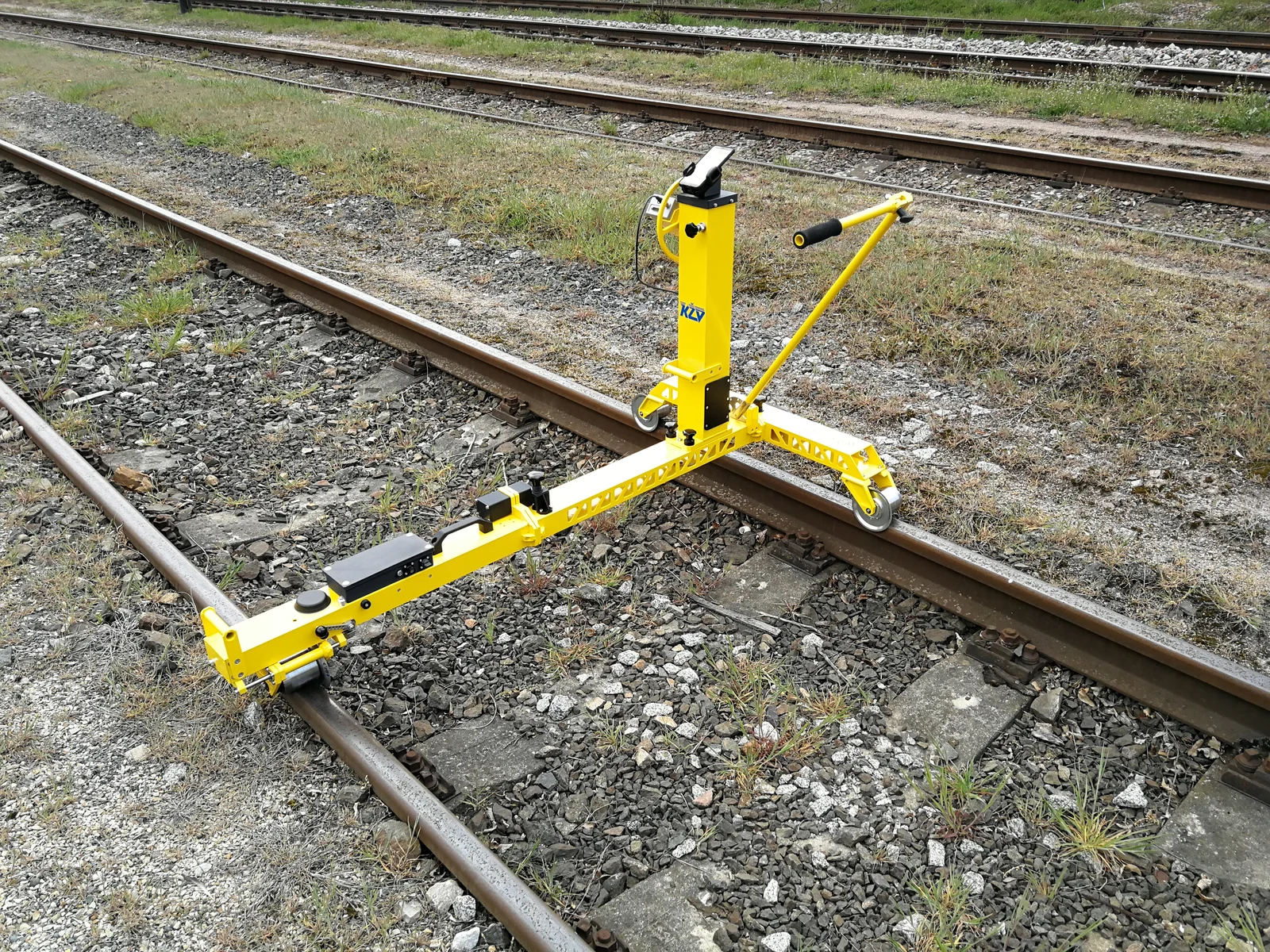

The measuring arm reaches to the far rail; one person lifts the trolley onto the track and sets it to the gauge
The measuring arm reaches to the far rail; one person lifts the trolley onto the track and sets it to the gauge

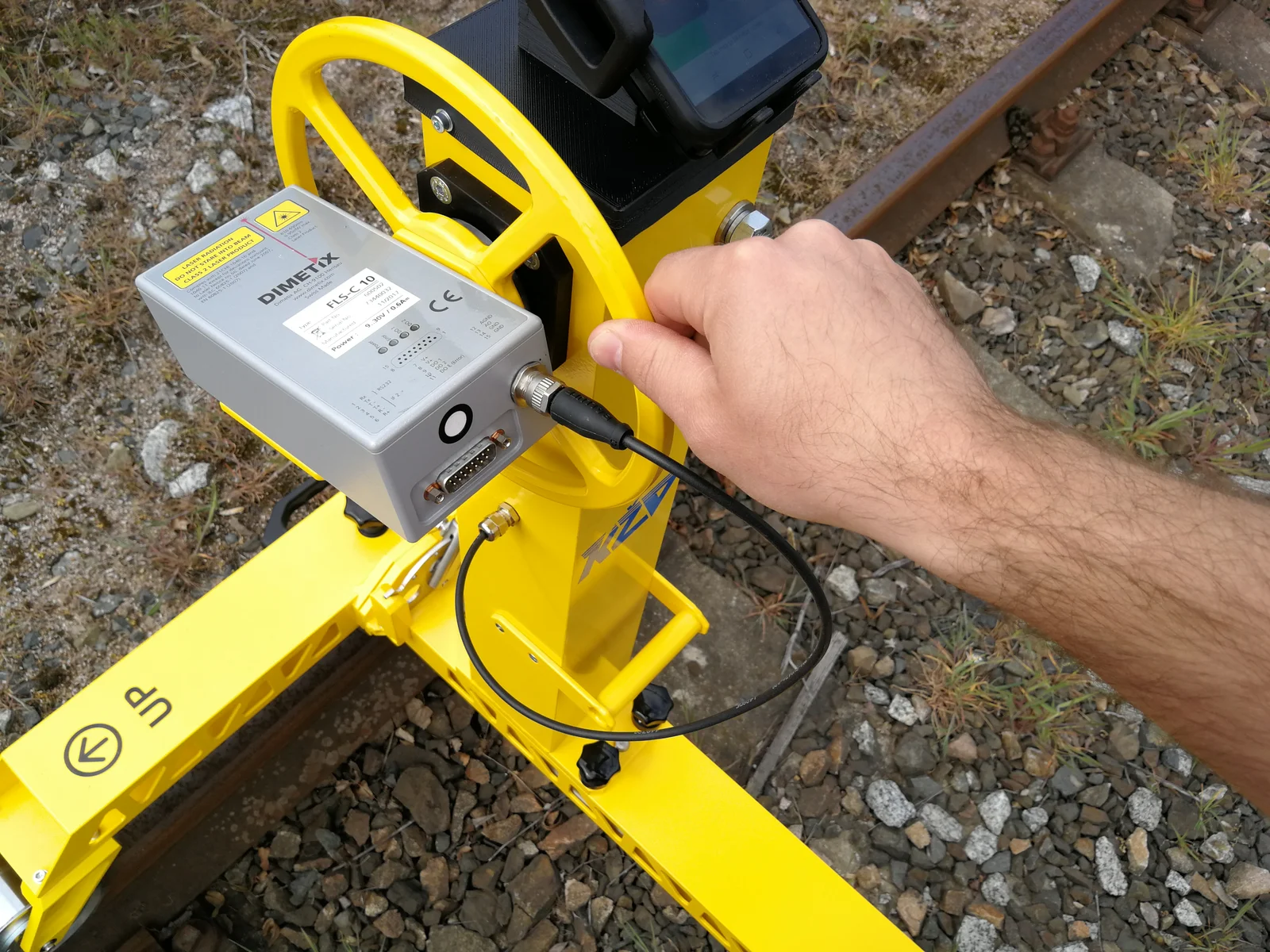

The DIMETIX laser distance meter connects with a single cable; it is the same laser offered as an add-on for the KRAB trolleys
The DIMETIX laser distance meter connects with a single cable; it is the same laser offered as an add-on for the KRAB trolleys

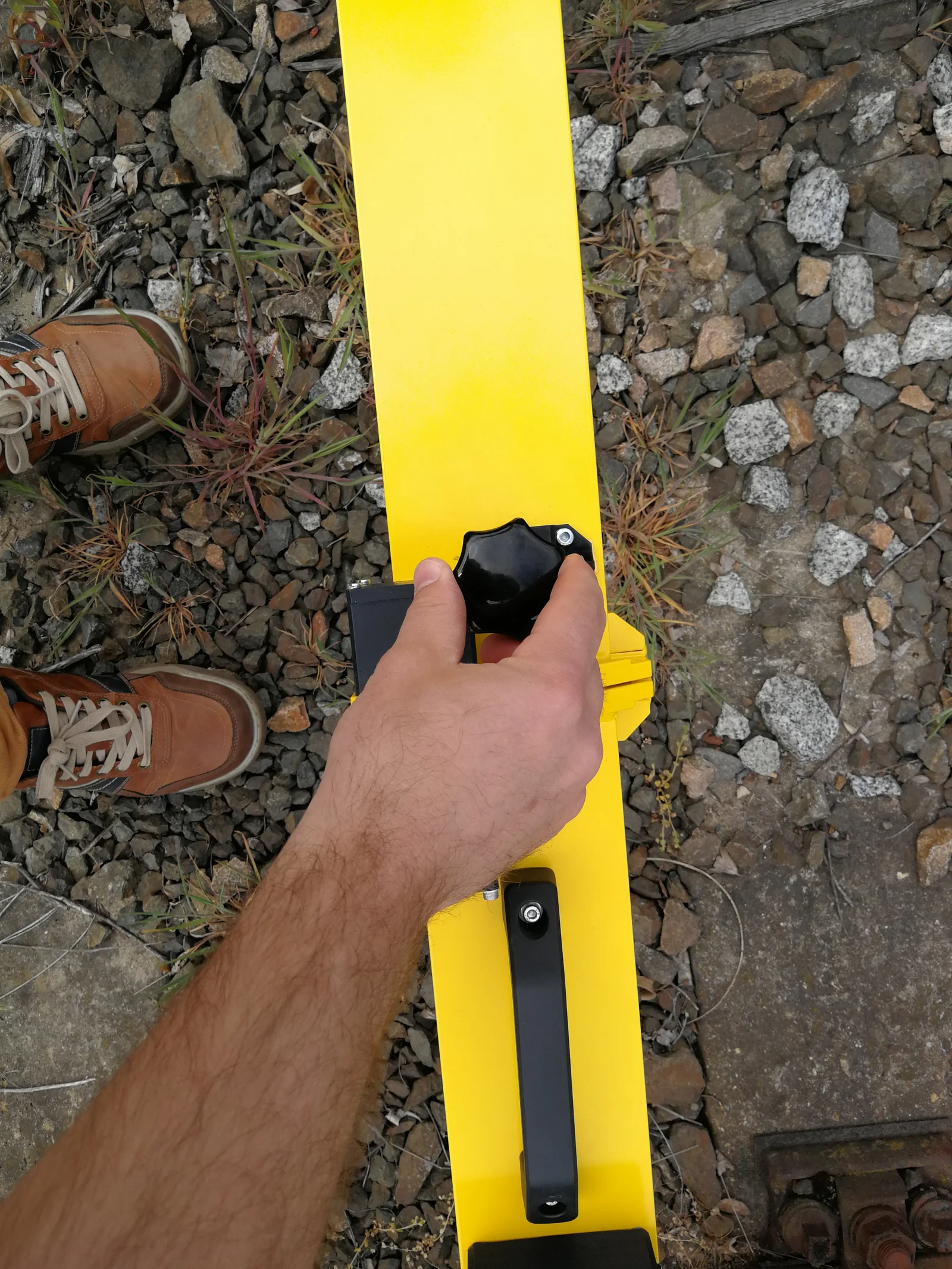

One hand-tightened knob locks the arm to the beam, no tools needed
One hand-tightened knob locks the arm to the beam, no tools needed

Overview & Specifications

Why Choose T-METIX

  • You need a lightweight trolley for basic track geometry — gauge, cant and twist.
  • You need track position measurement referenced from fixed points or infrastructure.
  • Structure gauge verification or infringement detection is required.
  • Catenary, platform, or bridge geometry needs to be documented.
  • You need comparison with project dimensions or previous measurements.

T-METIX is a track geometry trolley for fast, accurate measurement of the basic railway track geometry parameters — gauge, cant and twist. Its lightweight construction and high-precision point laser measurement make it usable across a wide range of railway and tramway networks, and it is available for gauges from 600 mm to 1676 mm.

Two sensors — a laser distance meter and an incremental rotary sensor — also give 2D position detection of objects around the track. A positioning wheel with an accurate screw-adjuster orients the swiveling laser.

  • Measurement + check modes — measure new data or verify against previous measurements
  • 2D position detection — objects around the track referenced from fixed infrastructure
  • Comparison capability — compare with project dimensions or previous measurement campaigns
  • Dismantles to 4 pieces — dedicated transportation box included

Software

Measurements are taken with the DistoDroid 3.0 Android application, which handles laser distance measurement, track geometry acquisition, kilometer referencing and project data management, communicates with the trolley over Bluetooth and shows results on screen in real time. Recorded data is exported in structured .csv format and evaluated in KRAB 11.

Technical Specifications

Weight

23 kg

Gauge Range

600–1676 mm

Battery Life

8 hours

Sensors

Laser distance meter + incremental rotary sensor

Positioning

Fine screw adjuster for laser orientation

Data Format

Structured .csv export

Transport

Dismantles to 4 pieces, dedicated box

What It Measures

Primary measurement capabilities

Measured quantities for T-METIX
Parameter
Gauge
Cant
Twist
Track Structure Gauge
Infringements to Structure Gauge
Platform Edge Position
OHL (Catenary) Position
Bridge Curvature
Distance Between Tracks

Compatible Software

Fully integrated with the KZV software ecosystem

DistoDroid 3.0

View details

KRAB 11

View details

Download Datasheet

Full technical specifications as a PDF:

English (EN)
