SPIDER
Model: SPIDER Handheld Device
SPIDER electronic wheel diameter measuring device for railway and tram vehicles — 1.3 kg, 0.003 mm precision, optional wireless Bluetooth readout
A compact 1.3 kg handheld device for precise wheel diameter measurement, used in workshops and depots for in-service wear checks and measurement before reprofiling. Wireless Bluetooth transmission of the reading to a PC, tablet or phone is available as an option.
Measurement Tasks
At a glance
SPIDER in Detail
Overview & Specifications
Why Choose SPIDER
- You need wheel diameter measurement for railway or tram vehicles
- You check wear in service or measure wheels before reprofiling
- You need metrological-grade precision (calibrated by Czech Metrological Institute)
- Readings should go straight to a PC, tablet or phone instead of a paper log (optional Bluetooth module)
- Workshop or depot use — compact, portable, battery-powered

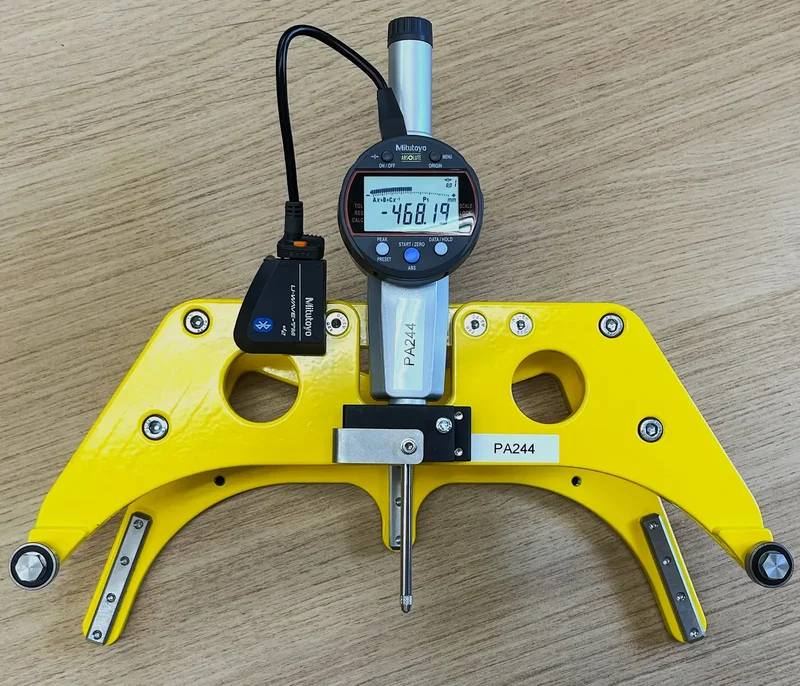

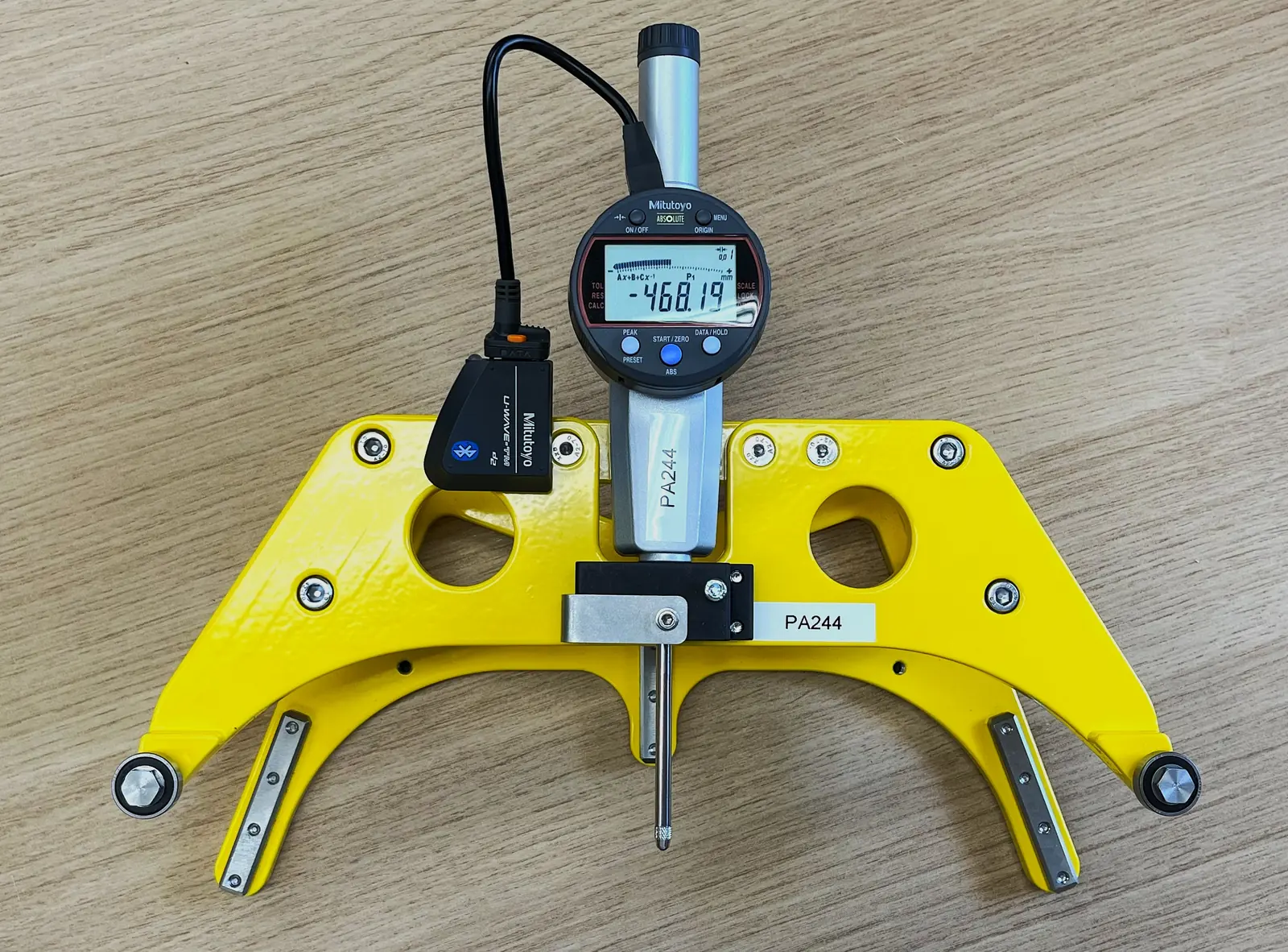

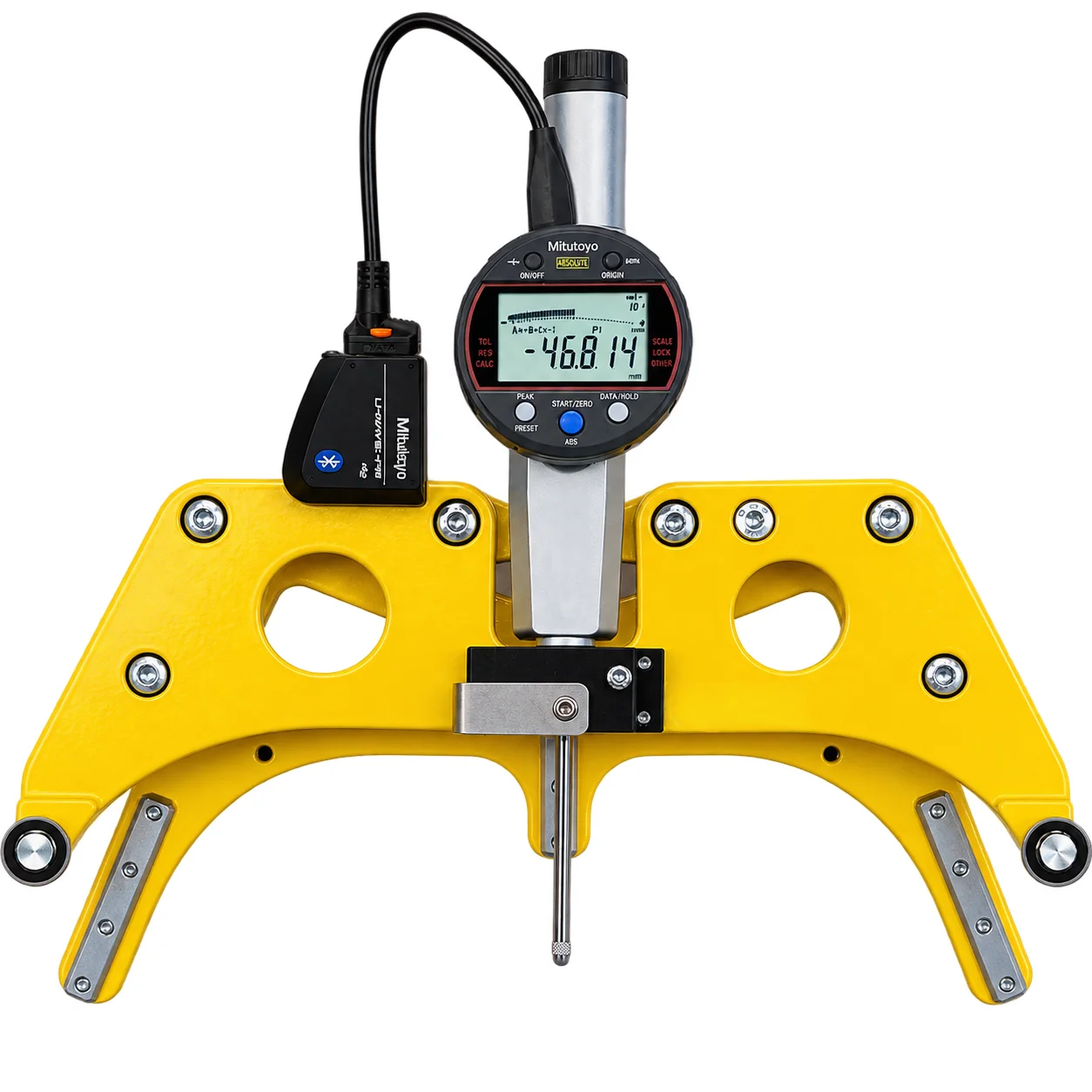

SPIDER measures wheel diameter indirectly via rise calculation on a 300 mm symmetrical chord. A MITUTOYO absolute digital sensor sits at the chord midpoint, with a spring-mounted tip rotatable 180° so both sides of the wheel can be measured.
- 0.003 mm rise precision — MITUTOYO absolute digital sensor
- 500–2250 mm wheel range — covers all standard railway and tram wheels
- Calibration included — supplied calibration stand with gauges (0.001–0.002 mm), checked by the Czech Metrological Institute
- Sensor memory — remembers zero calibration even after power off
- Contact at 70 mm (railway) or 45 mm (tram) from the inner face of the wheel rim

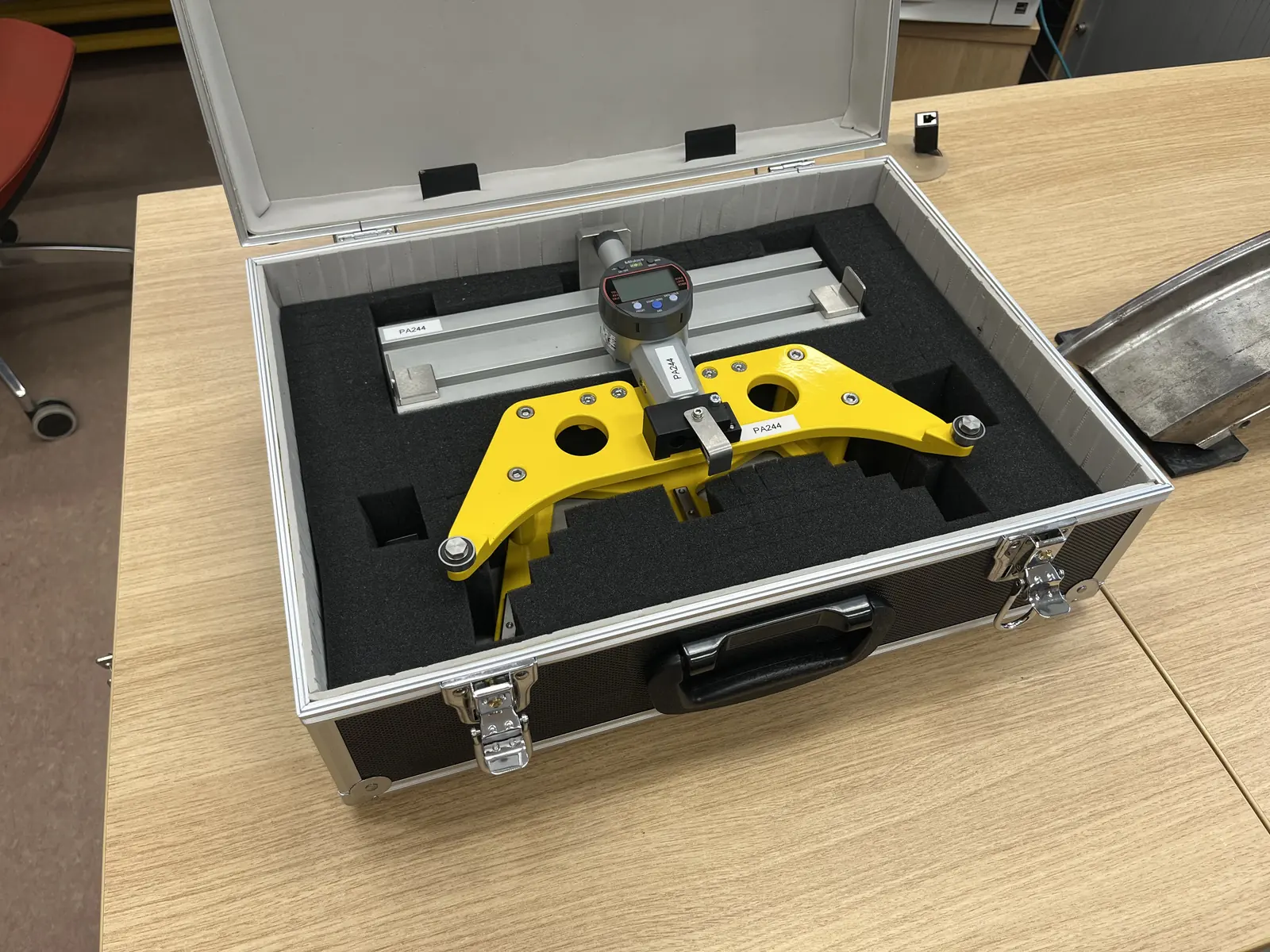

- 1.3 kg device, 3.1 kg complete suitcase — one person carries the whole kit
Wireless Data Transmission
The optional Bluetooth module links the digital indicator to whatever the technician already carries, so diameters no longer have to be copied by hand.

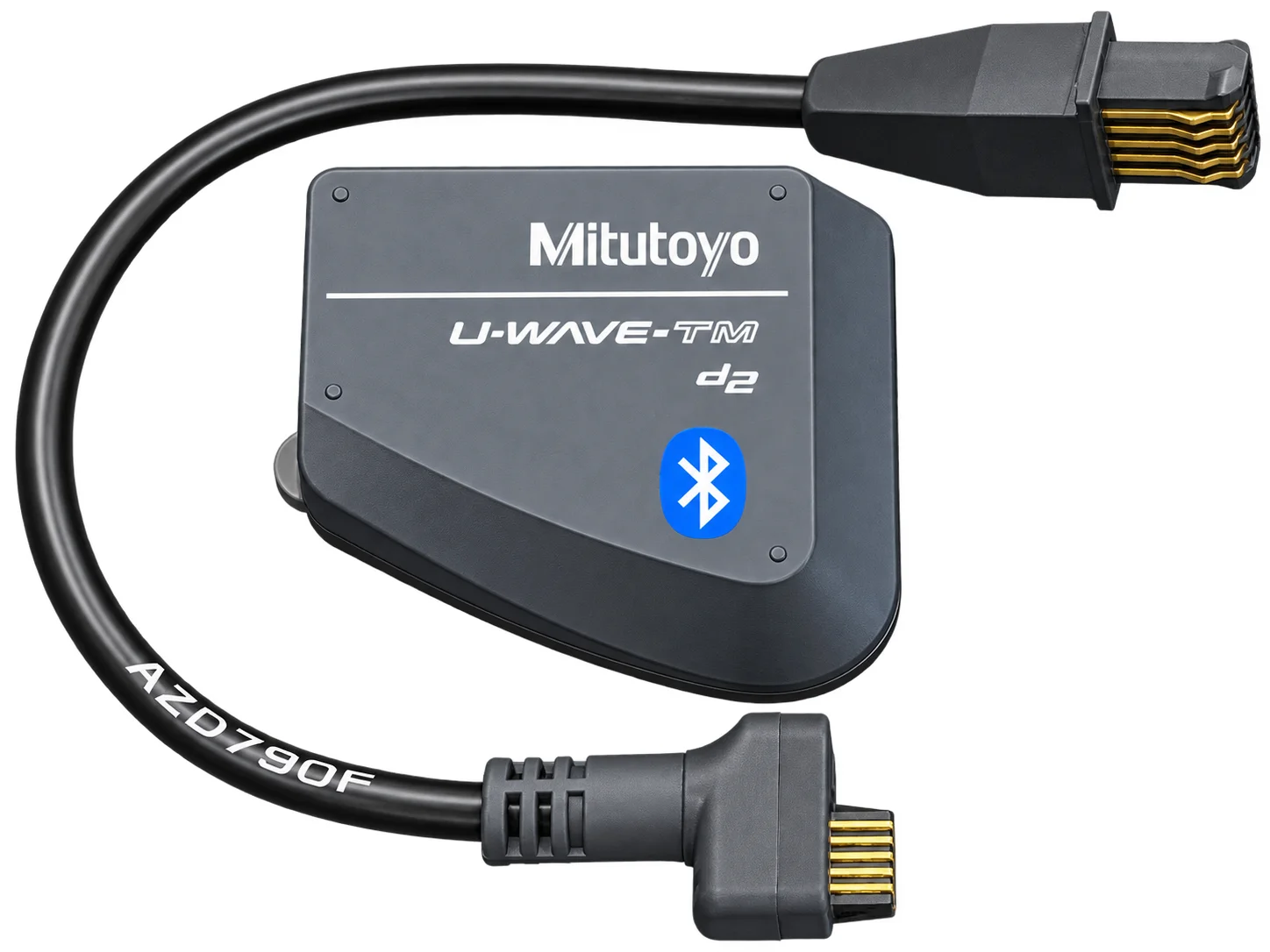

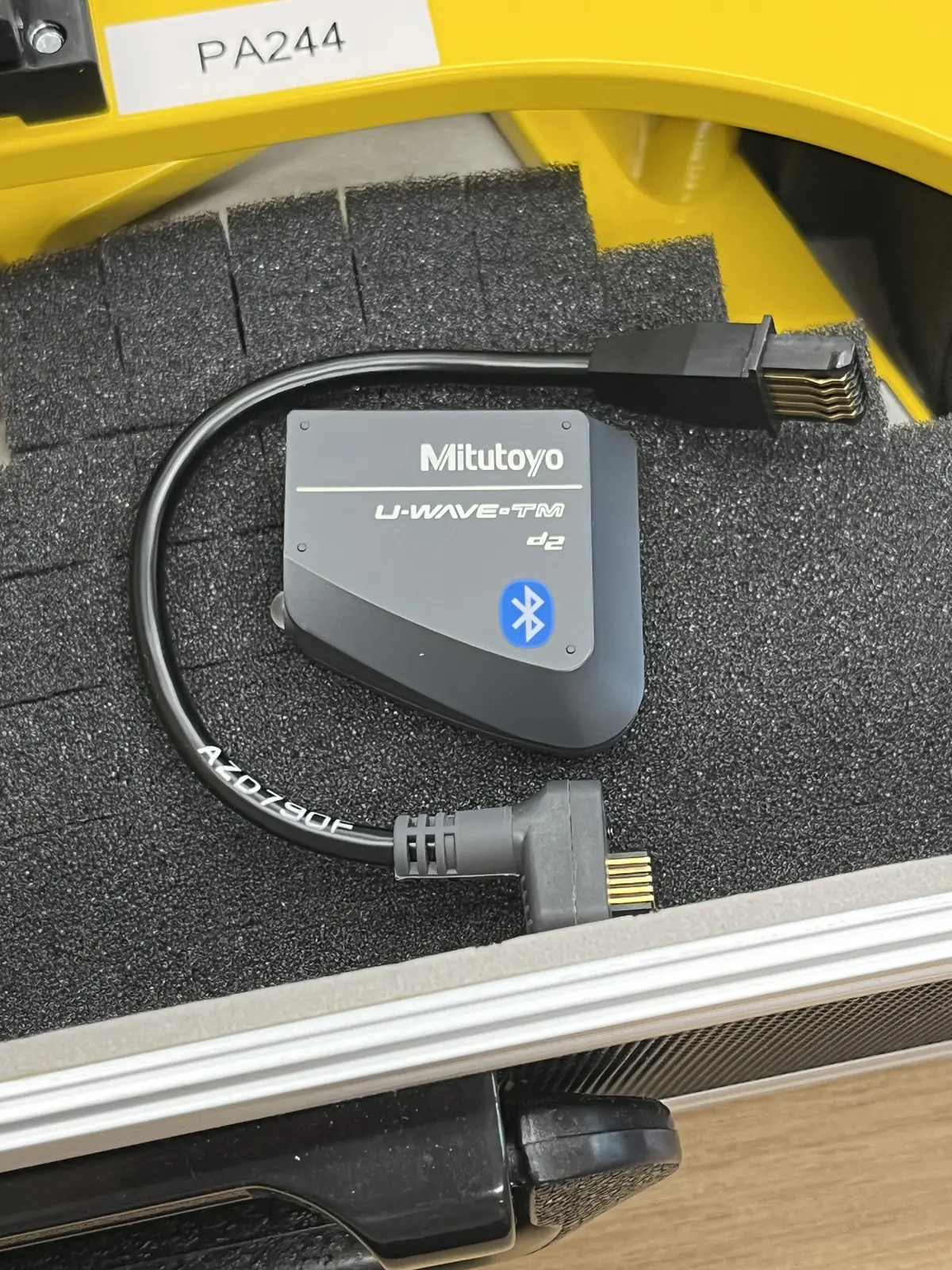

- Mitutoyo U-WAVE-TM d2 module — connected to the digital indicator's Digimatic output

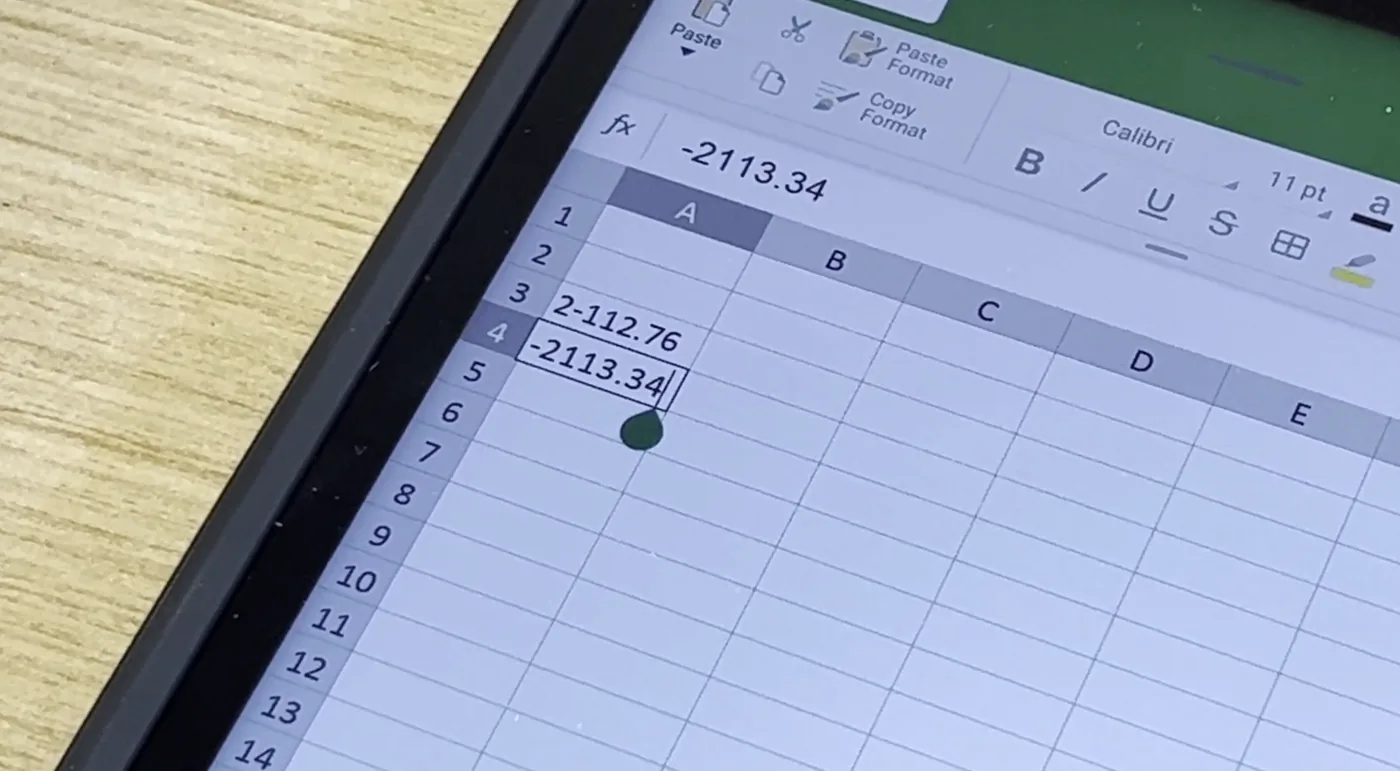

- No receiver needed — the reading shown on the display is sent directly to any Bluetooth-enabled PC, tablet or smartphone
- Mitutoyo U-WAVEPAK compatible — PC and mobile software for logging and exporting wheel diameter data
- Range — approx. 16 m line of sight, approx. 10 m in a workshop environment
- Module battery life — approx. 1 year under normal use
Technical Specifications
Weight
approx. 1.3 kg (device), 3.1 kg (complete transport suitcase)
Dimensions
322 × 225 × 115 mm
Measurement Chord
300 mm (3-point symmetrical)
Rise Measurement Range
0–50 mm
Precision
0.003 mm (MITUTOYO sensor)
Battery Life
3000 hours
Wireless Transmission
Optional: Bluetooth, Mitutoyo U-WAVE-TM d2
Wireless Range
~16 m line of sight, ~10 m in a workshop
Bluetooth Module Battery
~1 year of normal use
Operating Temperature
0 to +40°C (−10 to +60°C storage)
What It Measures
Primary measurement capabilities with guaranteed accuracy
| Parameter | Accuracy |
|---|---|
| Rise Value | ±0.003 mm |
| Wheel Diameter | ±0.2 mm |
| Wheel Diameter Range | 500–2250 mm |
Download Datasheet
Full technical specifications as a PDF:
Videos
SPIDER Wheel Diameter Measurement

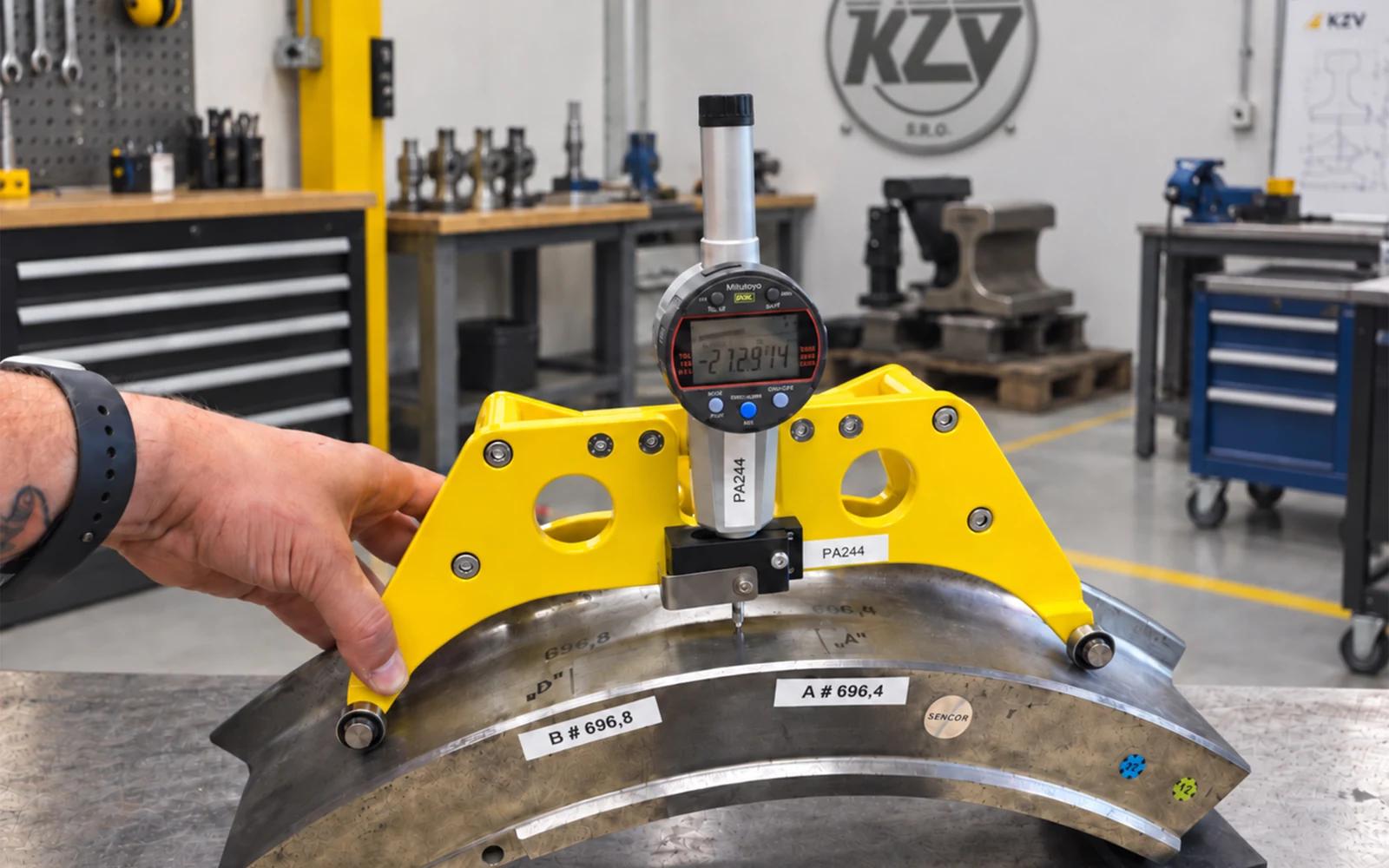

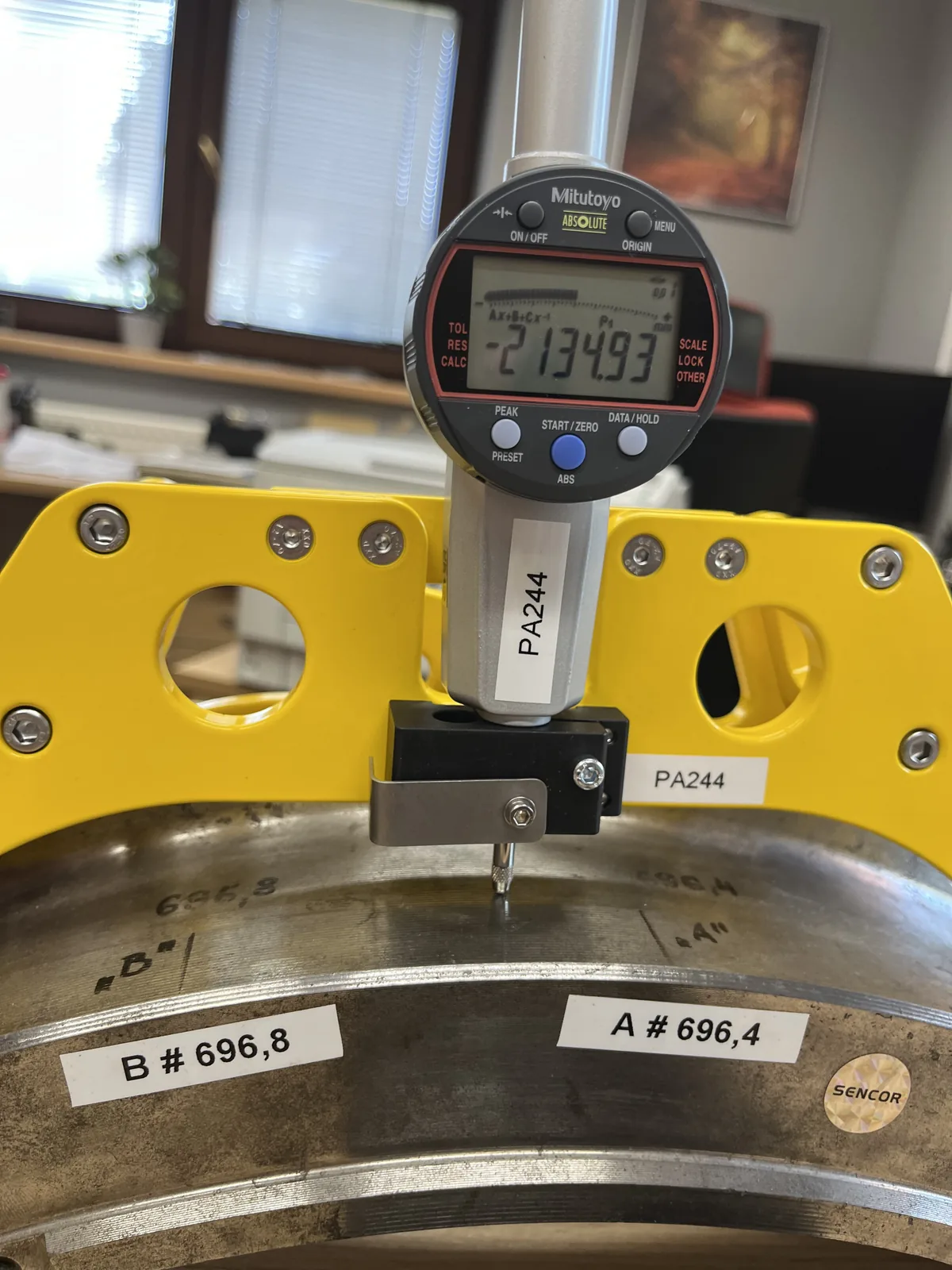

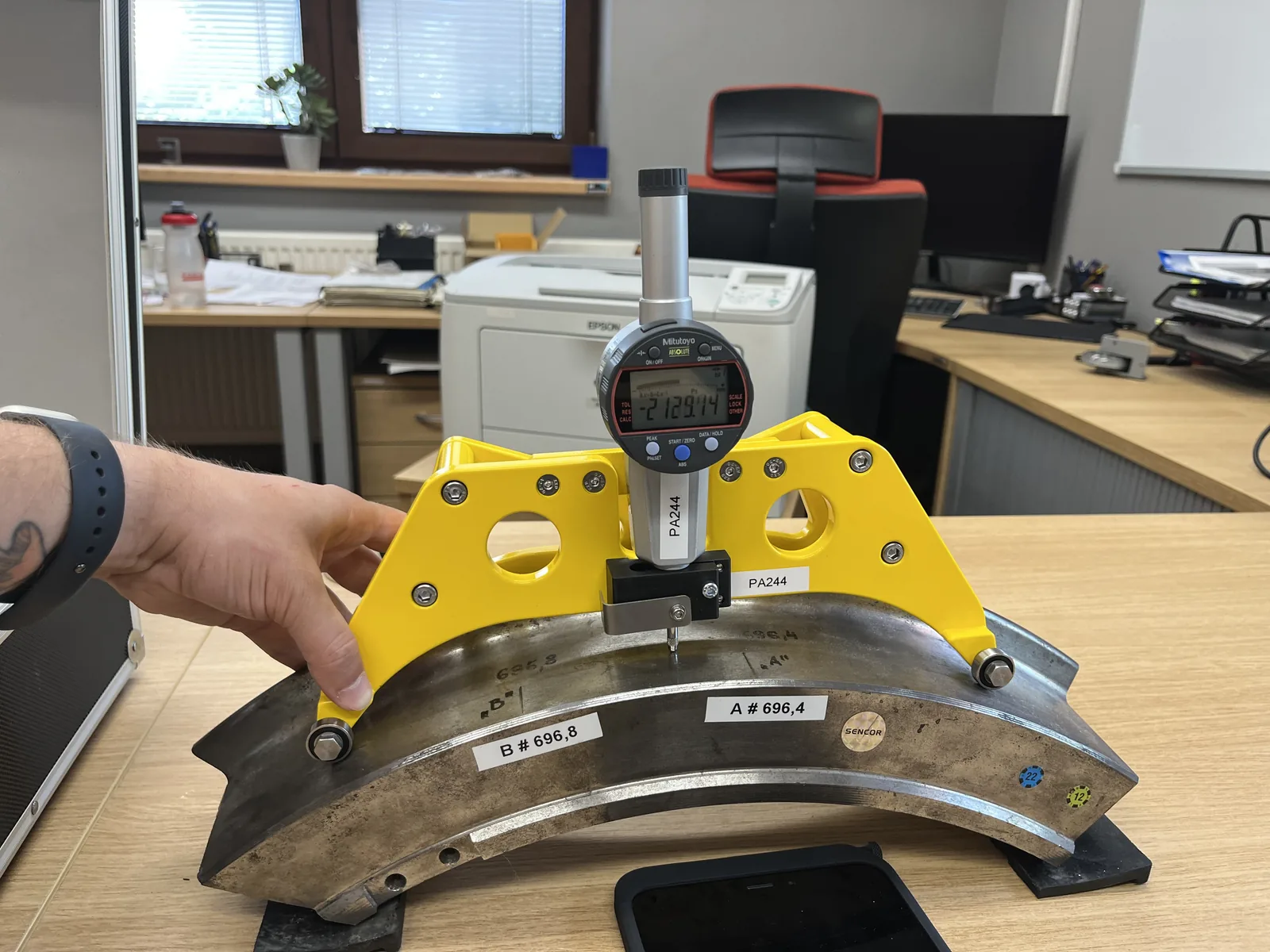

SPIDER measuring the wheel diameter of a vehicle: the gauge is placed on the wheel and the reading is taken from the digital indicator.
Interested in SPIDER?
Contact us for detailed specifications, pricing, and delivery information
