Hardware Products
Precision measurement systems for track geometry, rail corrugation, clearance profiling, wheel inspection, and more
KRAB Family
Track geometry measurement trolleys — from 22 kg ultra-light to 110 kg towing-capable
KRAB S-LIGHT
Lightweight and compact full track geometry trolley. Wide range of accessories. Both vignole and grooved rails. 32 kg, 15 km/h, 8-hour battery.
KRAB Heavy (84-09SA)
Heavy-duty trolley for track geometry and rail profile measurement, towed behind a railway vehicle at up to 25 km/h.
KRAB U-LIGHT
Ultra-lightweight 22 kg track geometry trolley for maximum portability
GEKON Family
Rail corrugation measurement trolleys
GEKON Modular
Contactless rail corrugation and rail wear measurement on vignole and grooved rails — 0.15 μm resolution, no track closure needed.
GEKON Big Foot
Towed rail corrugation and rail profile measurement trolley — contactless laser sensors with 0.15 μm resolution, grooved and vignole rails, 40 kg, 8-hour battery.
Other Trolleys
VIPER and TURTLE for tram tracks, T-TROLLEY for basic geometry, T-METIX for laser distance measurement
VIPER
Measuring trolley for tram switch inspection: track geometry and rail profile measurement on grooved rails.
TURTLE
Towed measuring trolley for track geometry, clearance and rail wear profiles on tramway and railway networks — vignole and grooved rail, synchronized track images.
T-METIX
Lightweight 23 kg laser track geometry trolley — gauge, cant and twist plus track position reference, for gauges from 600 to 1676 mm
T-TROLLEY
Simple 23 kg track geometry trolley — gauge, cant, twist and distance with KrabDroid 3.0 and KRAB 11, built for any gauge from 600 to 1676 mm; third rail measurement add-on for metro networks
Specialized Products
Wheel inspection, vehicle-mounted undercarriages and concrete rail measurement
SPIDER
SPIDER electronic wheel diameter measuring device for railway and tram vehicles — 1.5 kg, 0.003 mm precision, optional wireless Bluetooth readout
MMD
Measuring undercarriages built to order for a customer's rail vehicle — track geometry under load at ~40 km/h, proven on Czech measuring cars and a towed measuring wagon in Finland

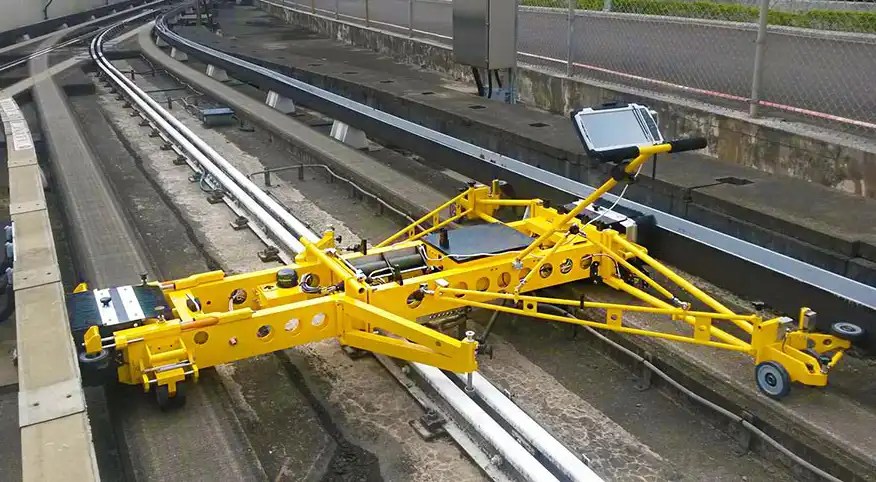

RWT
Measuring trolleys built to order for rubber-tired metro and guided transit systems — guideway, plinth and switch geometry, proven on several networks
Add-ons
Extensions for KRAB trolleys: clearance scanning, overhead line equipment and platforms

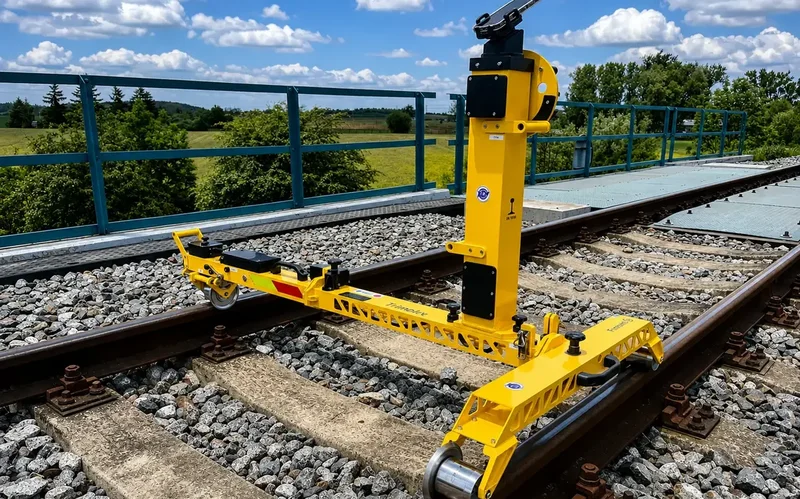

LPS - Laser Profile Scanner
Track clearance scanner with two rotating lasers — tunnels, platforms, overhead line equipment (OLE), vegetation, plus track geometry
Need Help Choosing the Right System?
Our team can help you select the right measurement solution for your railway network
